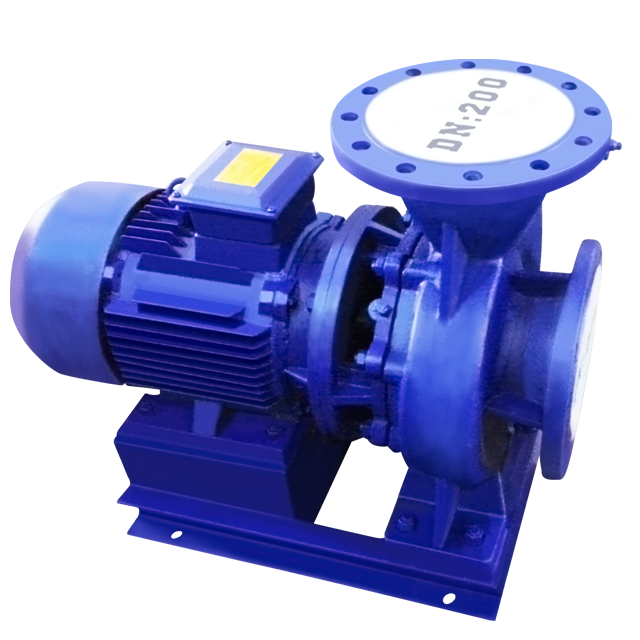

ISW Series Horizontal Pipeline Pump

ISW series horizontal centrifugal pump, scientific and technical personnel of the unit is the United Nations pump expert selection of domestic excellent hydraulic model, the IS-type centrifugal pump performance parameters, based on the generally horizontal pumps clever combination of design made according to the same time temperature, different media ALG derived based on the application of hot water, high-temperature corrosion-resistant chemical pumps, oil pump. This series of products with high efficiency, low noise, reliable performance, etc., to meet the latest requirements of the national machinery of the standard JB / T53058-93, the products according to the international ISO2858 standard design and manufacturing.

Overview

ISW series horizontal centrifugal pump, scientific and technical personnel of the unit is the United Nations pump expert selection of domestic excellent hydraulic model, the IS-type centrifugal pump performance parameters, based on the generally horizontal pumps clever combination of design made according to the same time temperature, different media ALG derived based on the application of hot water, high-temperature corrosion-resistant chemical pumps, oil pump. This series of products with high efficiency, low noise, reliable performance, etc., to meet the latest requirements of the national machinery of the standard JB / T53058-93, the products according to the international ISO2858 standard design and manufacturing.

Signification of Model

Usage

 ISW horizontal water pump, other liquids used for the transport of water and physical and chemical properties similar to water, apply to industrial and urban water supply and drainage, high-rise building pressurized water, garden irrigation, fire booster, long-distance transport, warm through the refrigeration cycle, bathrooms and other warm and cold pressurized water cycle and supporting equipment, the use of temperature t≤80 ℃.

 ISWR horizontal heat pumps widely used in: metallurgy, chemical, textile, paper, and hotels and restaurants and other boilers, circulation of urban heating system, ALWR type temperature t≤120 ℃.

 ISWH horizontal chemical pump for conveying solid particles, corrosive. Viscosity similar to water, apply to the petroleum, chemical, metallurgical, power, paper, food, pharmaceutical and synthetic fiber and other departments, the use of temperature -20 ℃ ~ + 120 ℃.

 ISWY horizontal pipeline oil transport gasoline, kerosene, diesel and other oil products, or flammable, explosive liquid, is transported medium temperature of -20 ℃ ~ 120 ℃.

 ISWHY horizontal stainless steel explosion-proof chemical centrifugal pump is applicable to transport inflammable chemical liquids.

 ISWD horizontal low speed pump to meet the requirements of low ambient noise situations, temperature t≤120 ℃.

Working Conditions

 The suction pressure ≤1.0mpa, the maximum working pressure or pump system ≤1.6mpa, namely suction pressure + pump head ≤1.6mpa, hydrostatic test pump pressure ≤2.5mpa, please specify when ordering system working pressure. 1.6mpa working pressure pump system should be greater than in the order presented separately, in order to manufacture the pump flow part and a coupling portion using steel materials.

 The ambient temperature <40 ℃, relative humidity <40%.

 The transmission medium volume fraction of solid particles per unit volume of not more than 0.1, particle size <0.2mm.

NOTE: If with small particles, please when ordering with the media so that manufacturers use wear-resistant mechanical seal.

Feature

 Stable operation: absolute concentricity excellent shaft and impeller static and dynamic balance, to ensure smooth operation without vibration.

 Leak: different materials carbide seal, to ensure the transportation of different media leak.

 Low noise: two low-noise pump under the bearing support, smooth operation, except for the faint sound of the motor, almost no noise.

 Low failure rate: The structure is simple and reasonable, a key part of supporting world-class quality, the whole time between failures increased substantially.

 Easy maintenance: replacement of seals, bearings, simple and convenient.

 More space: exports to the left, right, up three directions, easy piping installation, saving space.

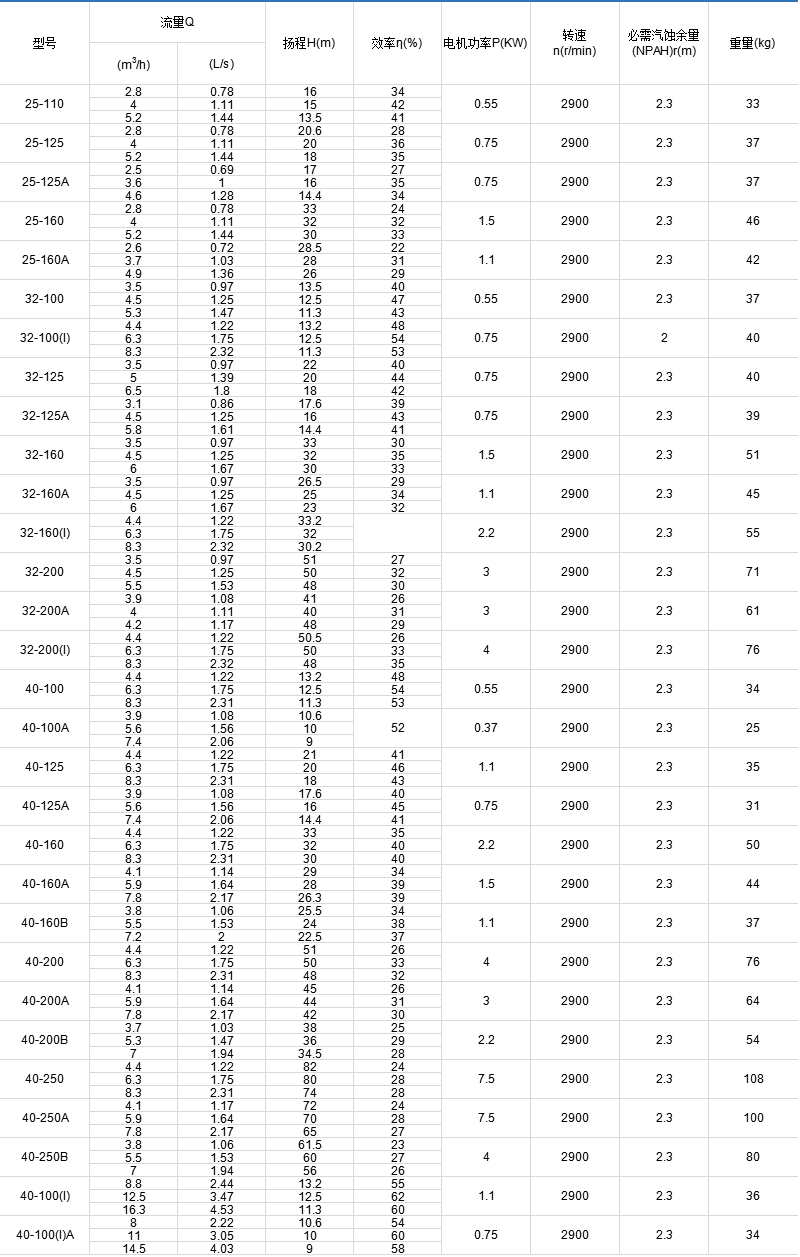

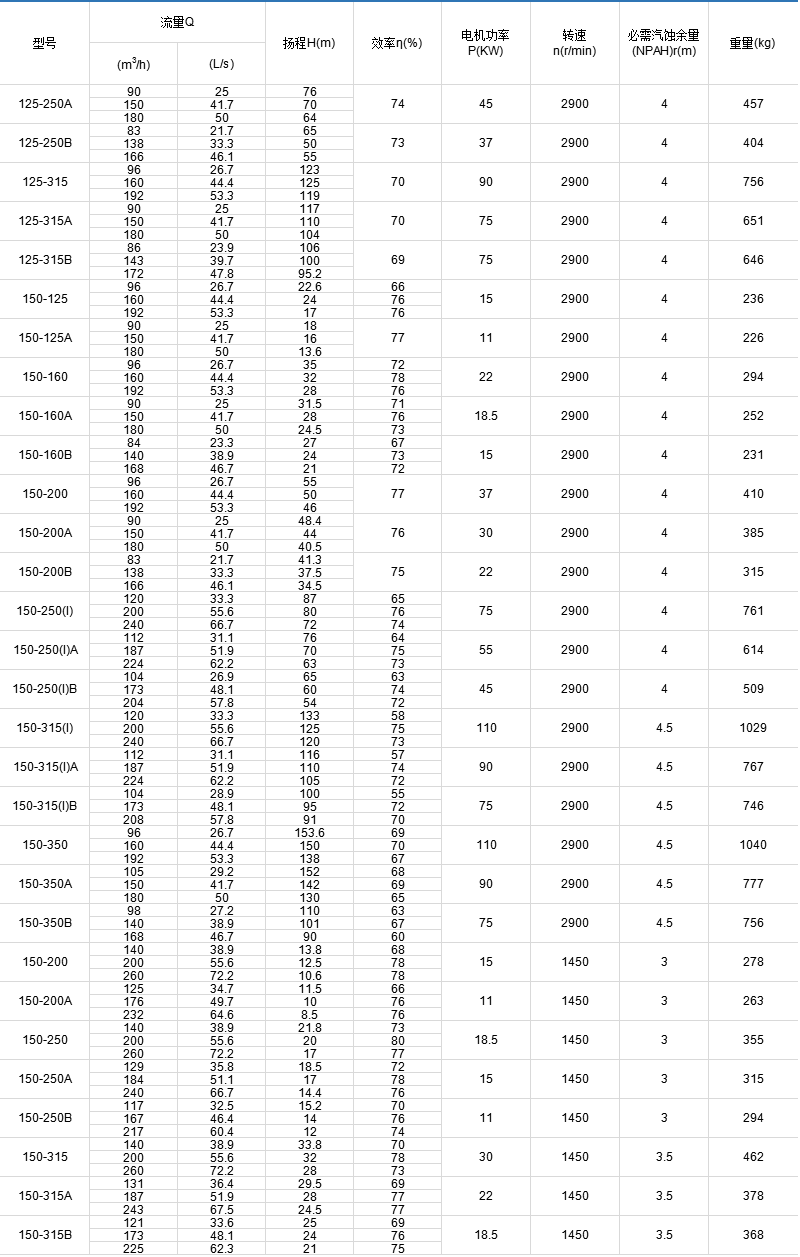

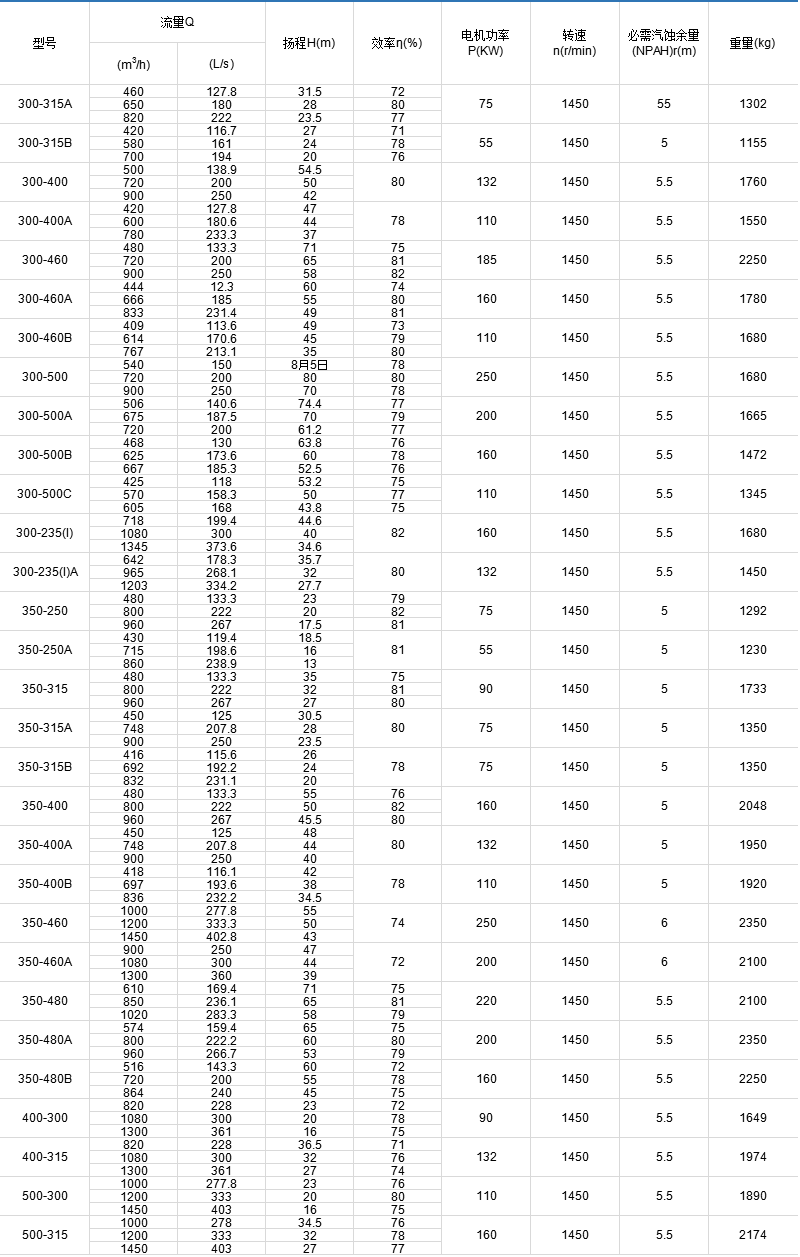

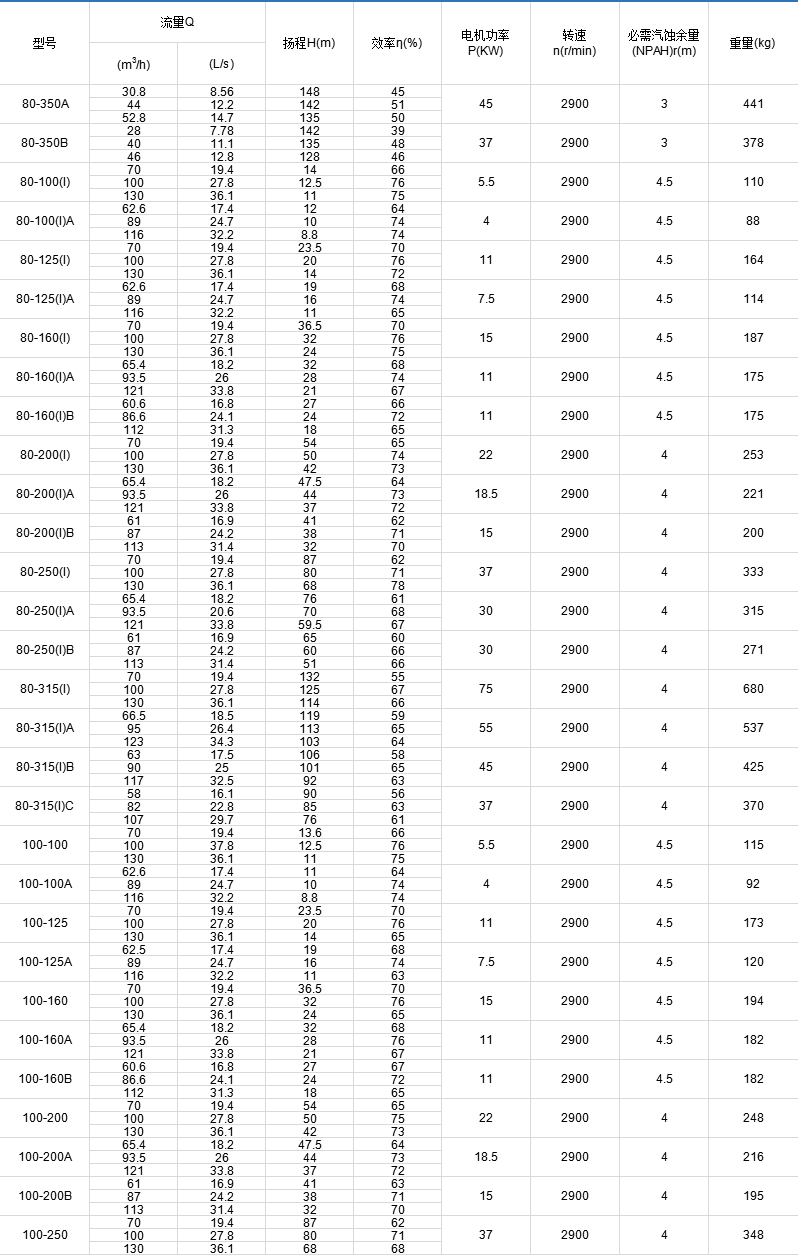

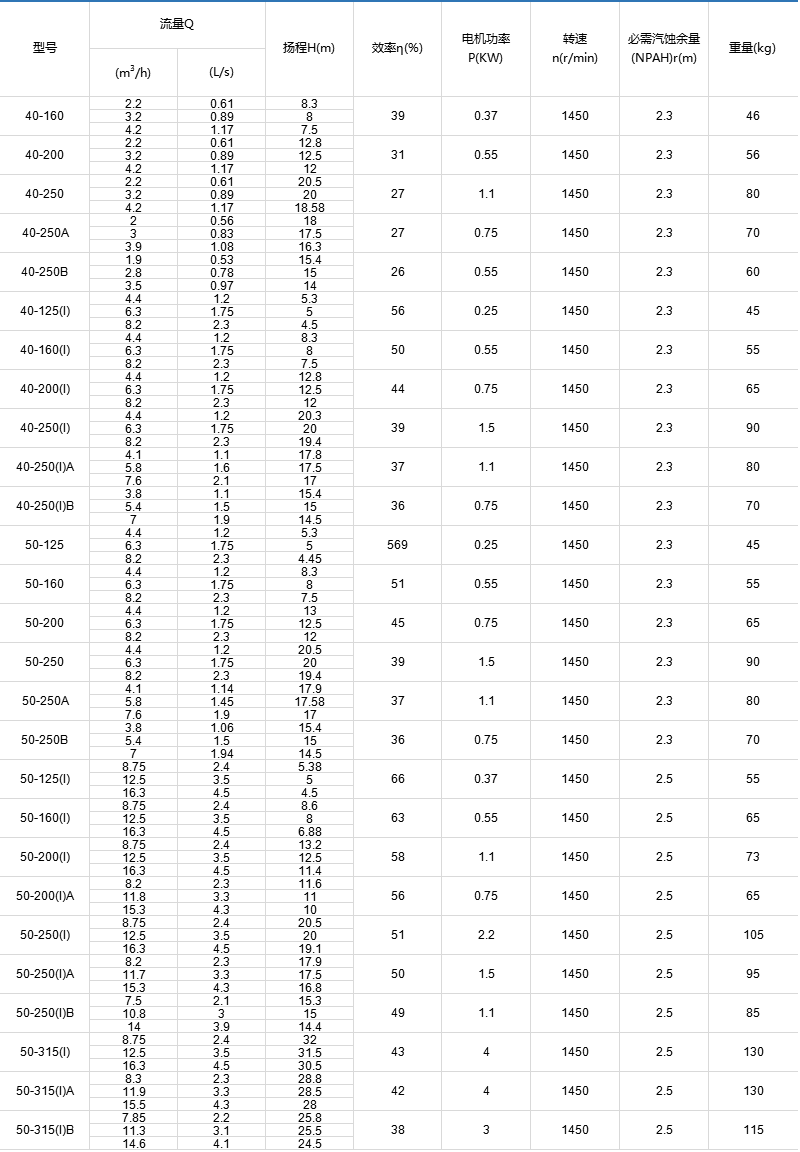

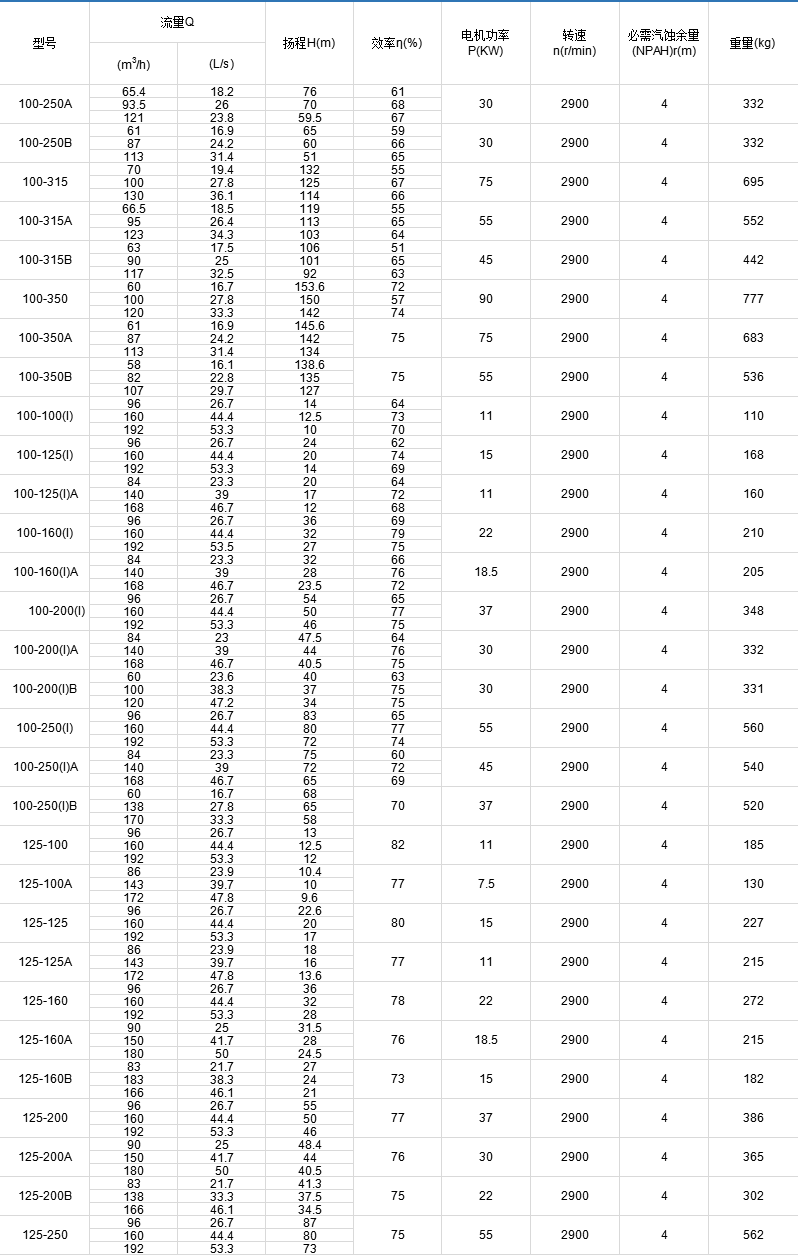

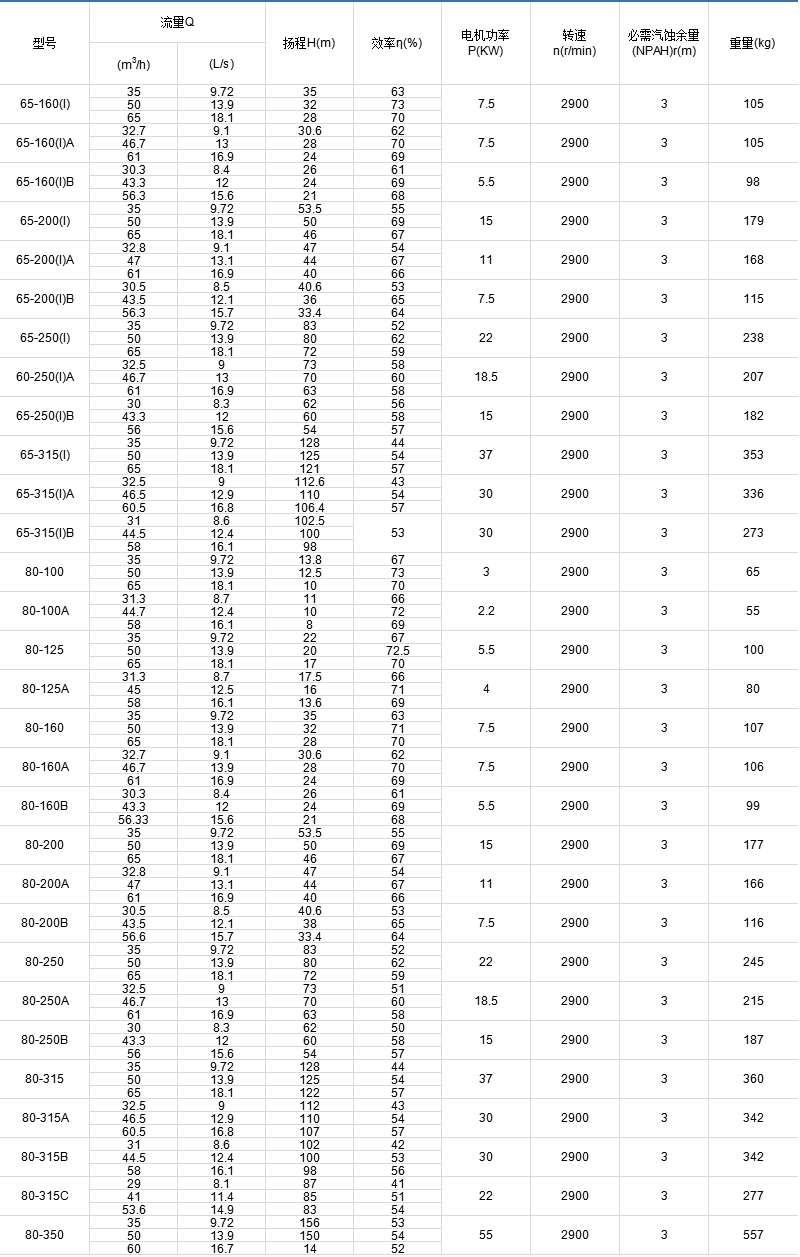

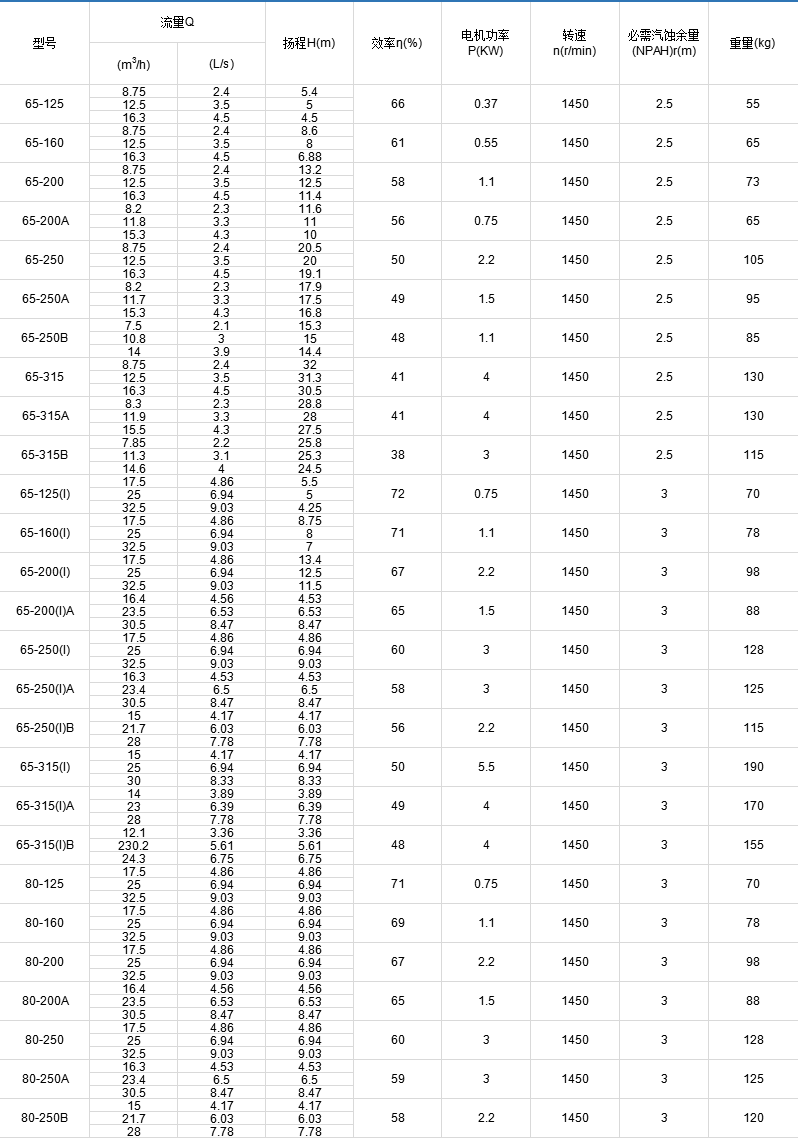

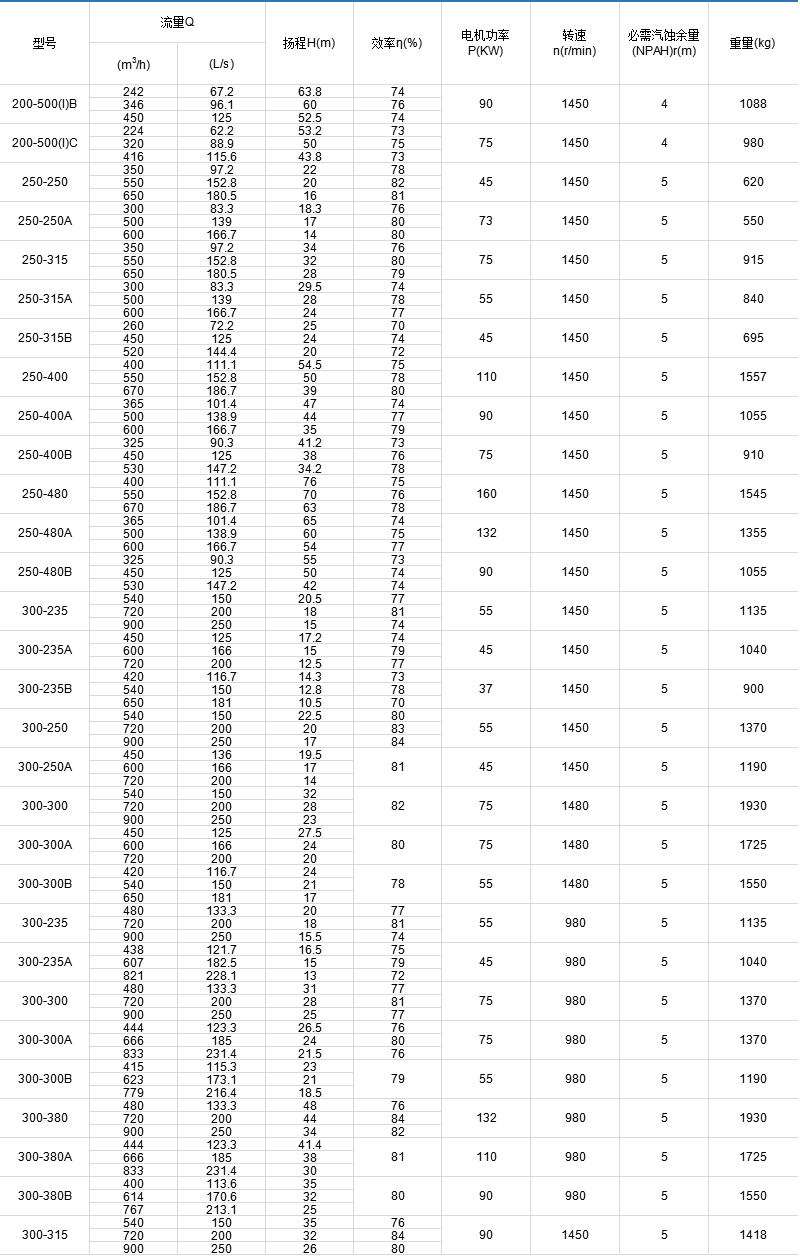

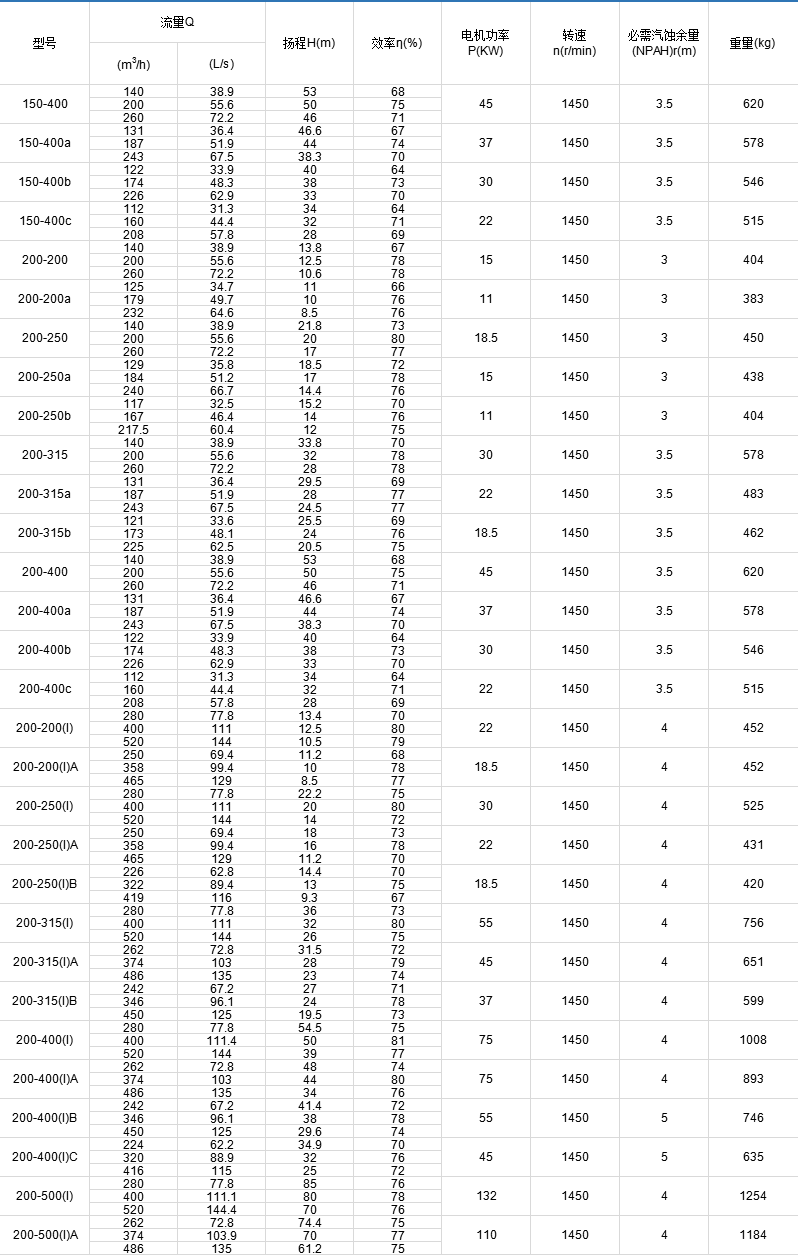

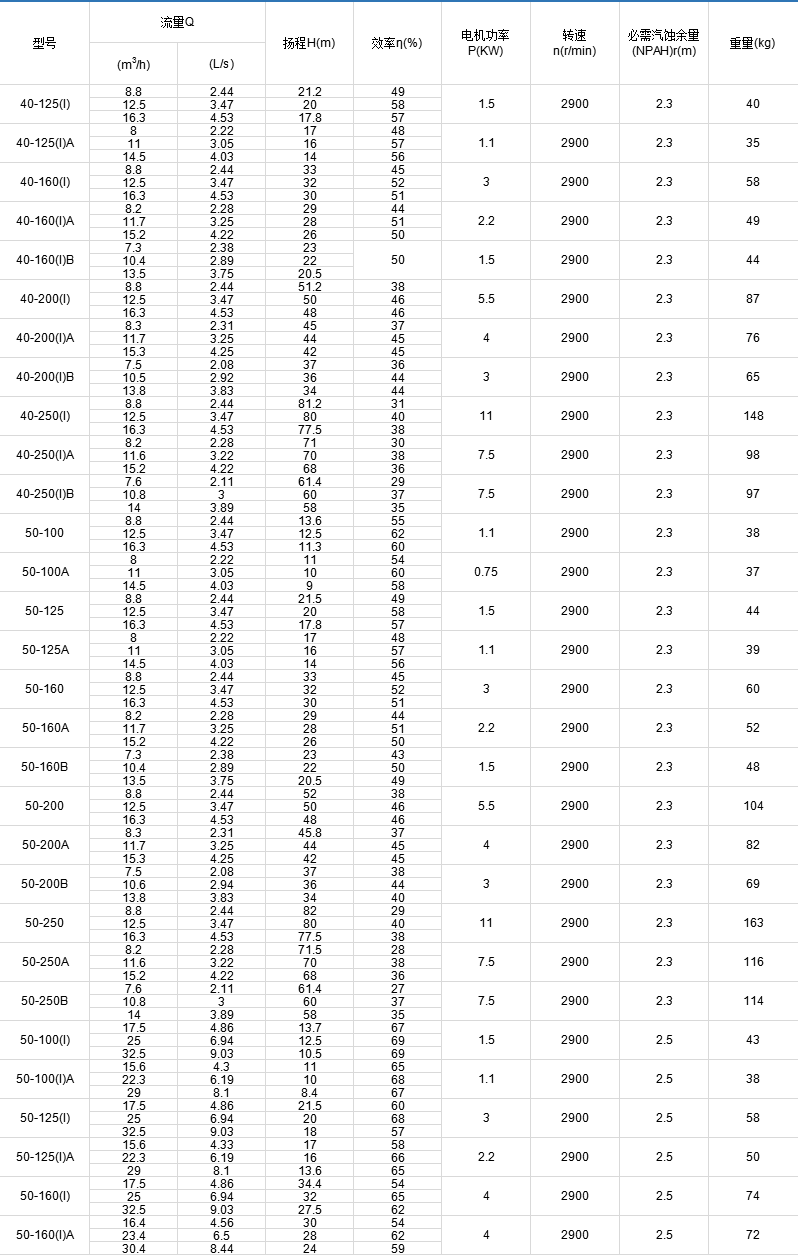

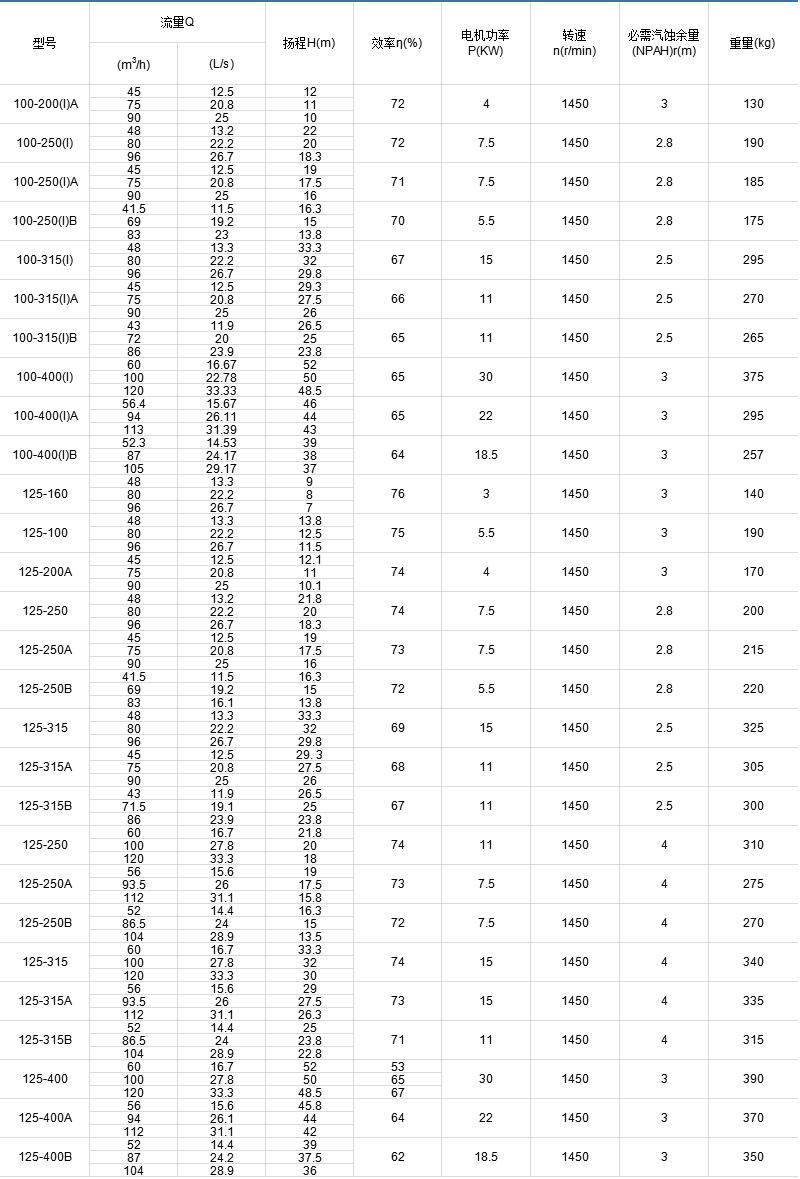

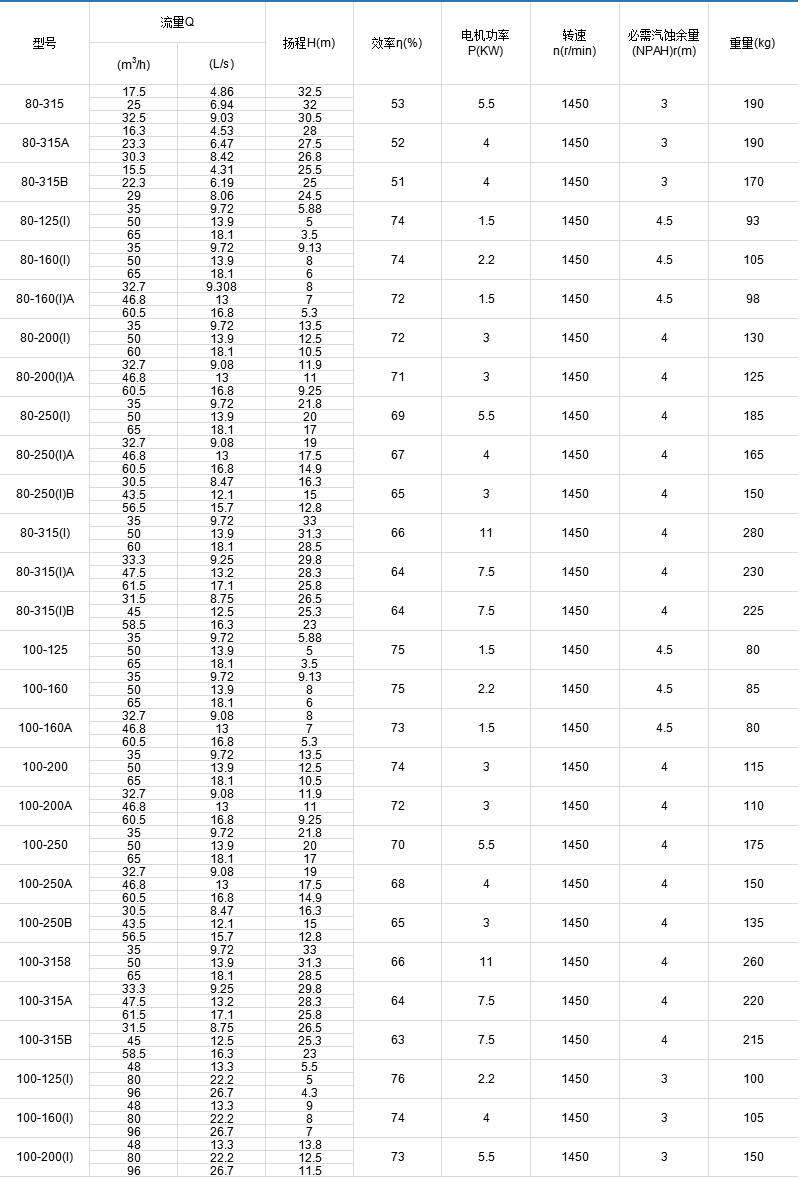

Parameters

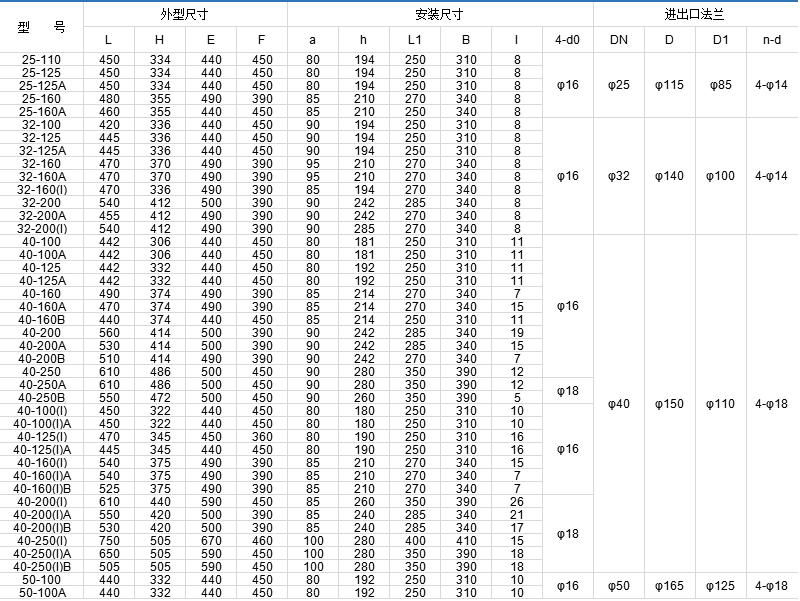

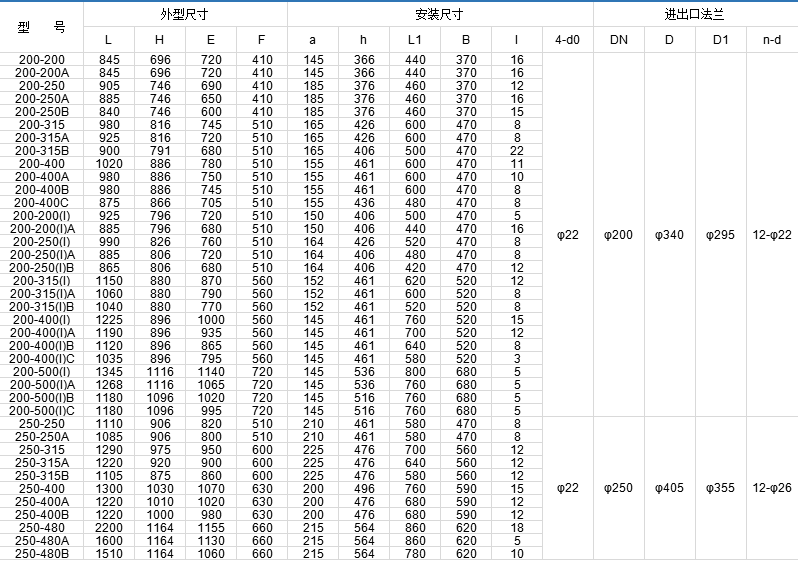

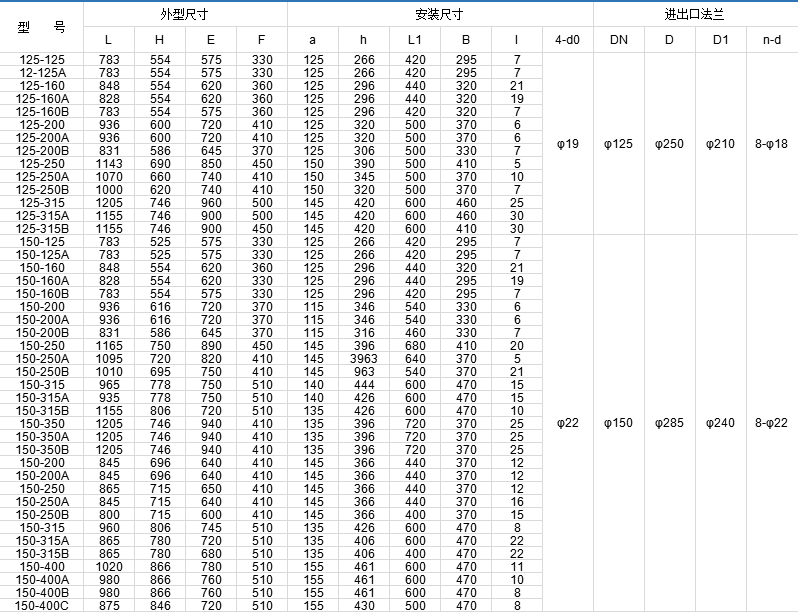

Dimensions

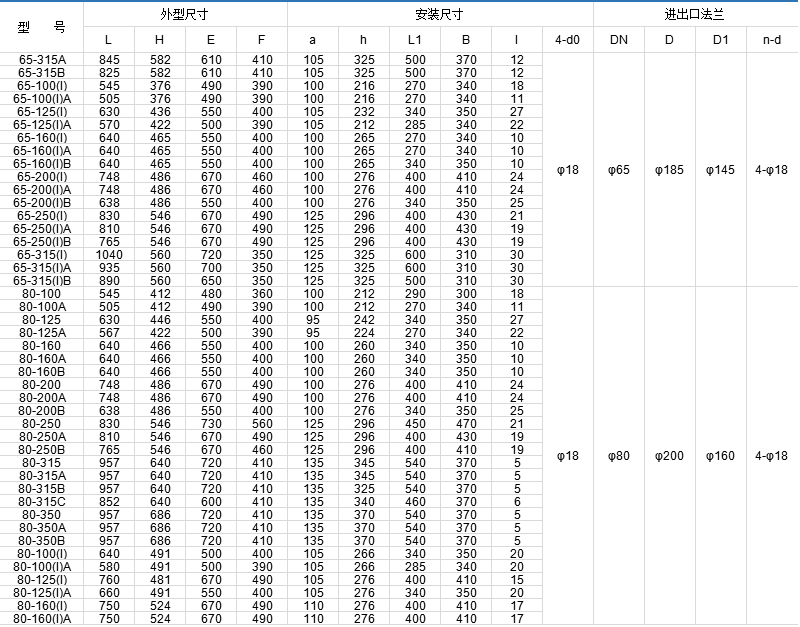

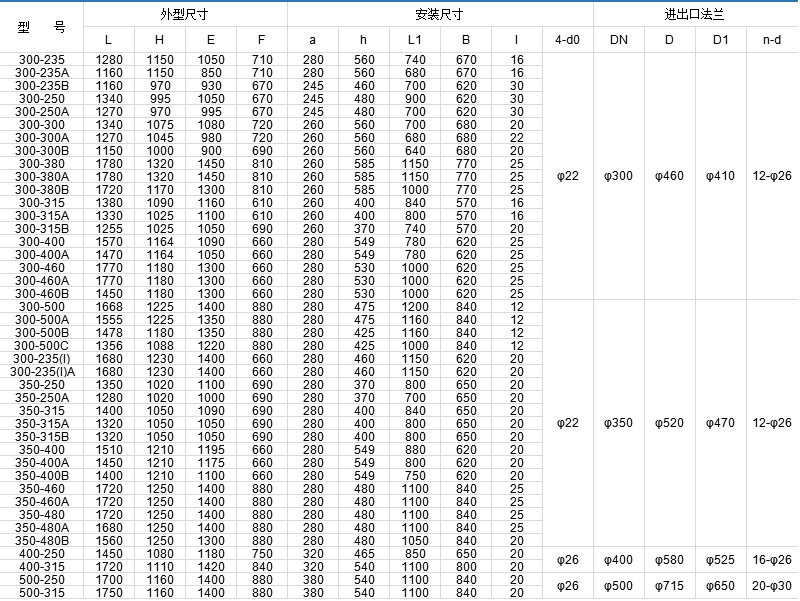

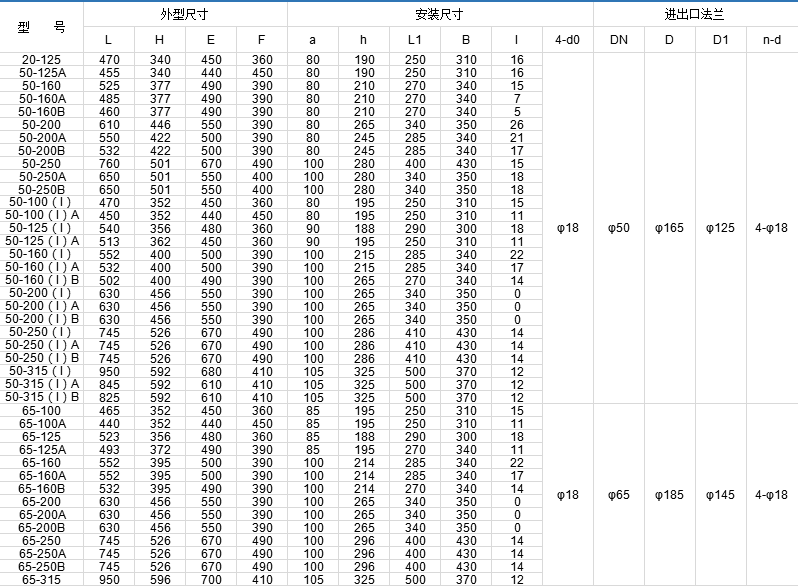

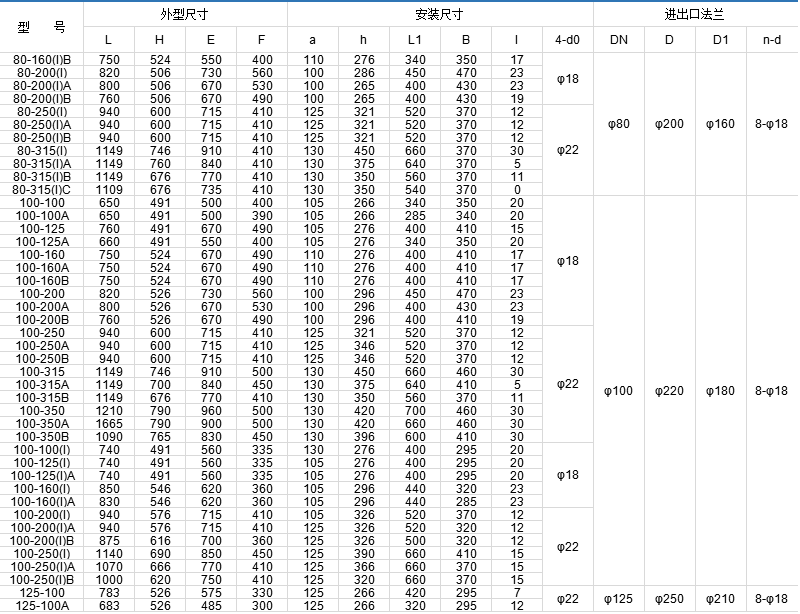

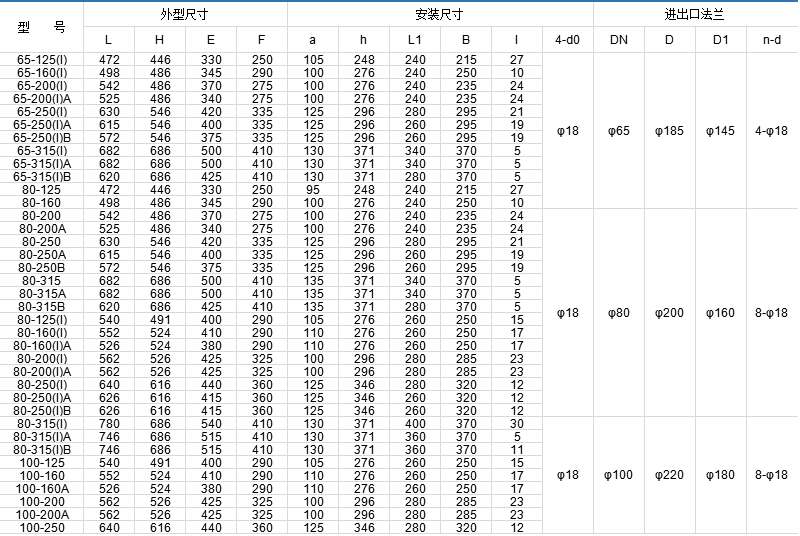

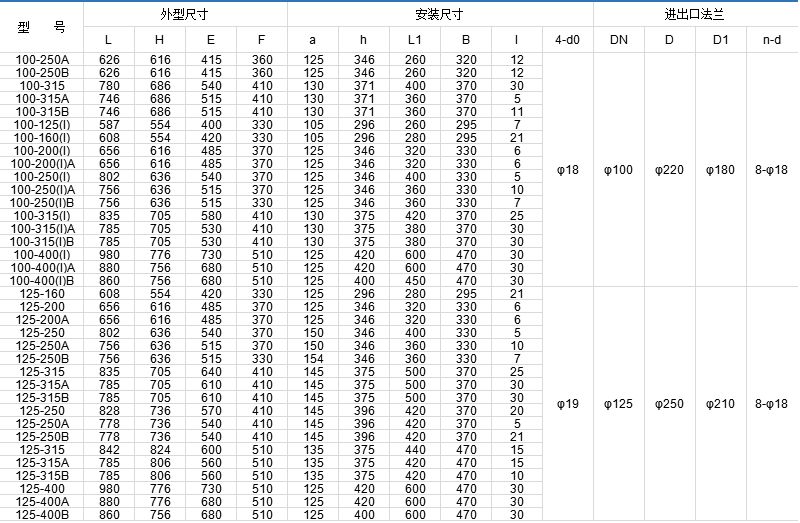

Installation size

Outline

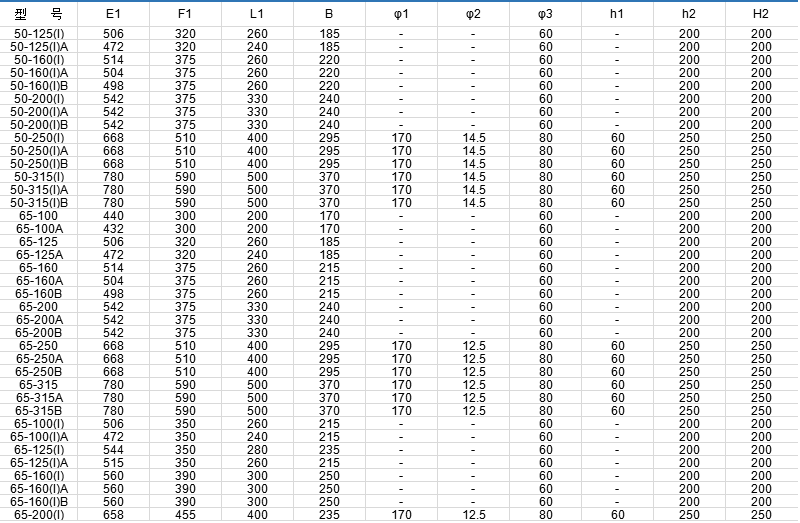

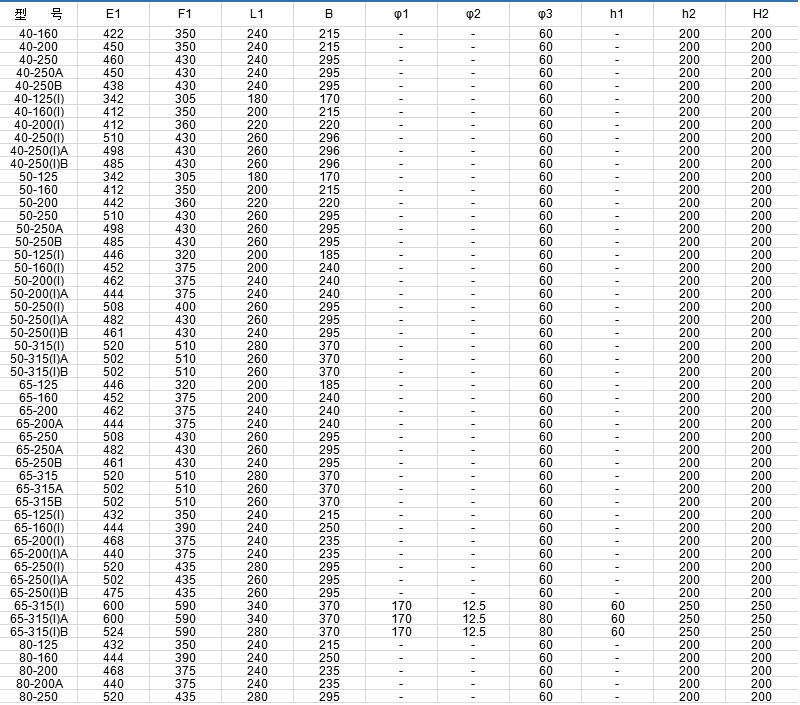

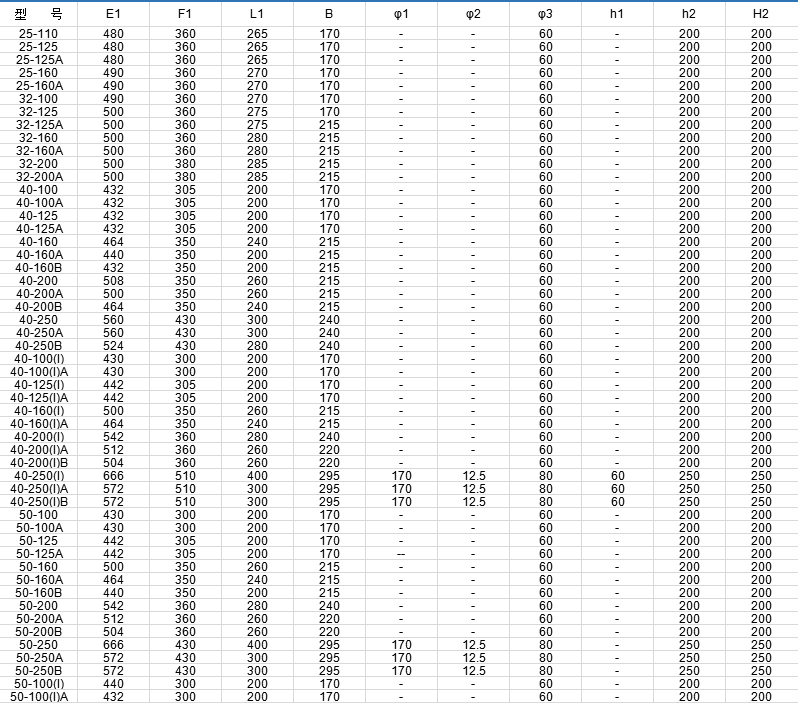

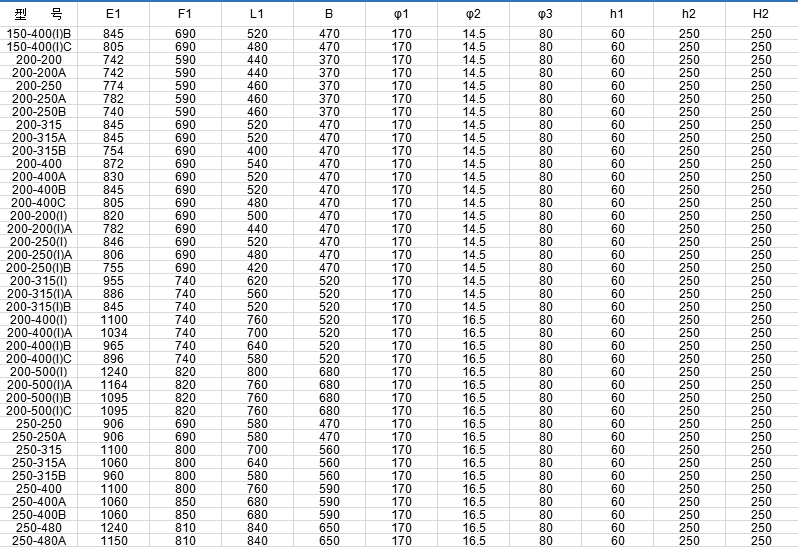

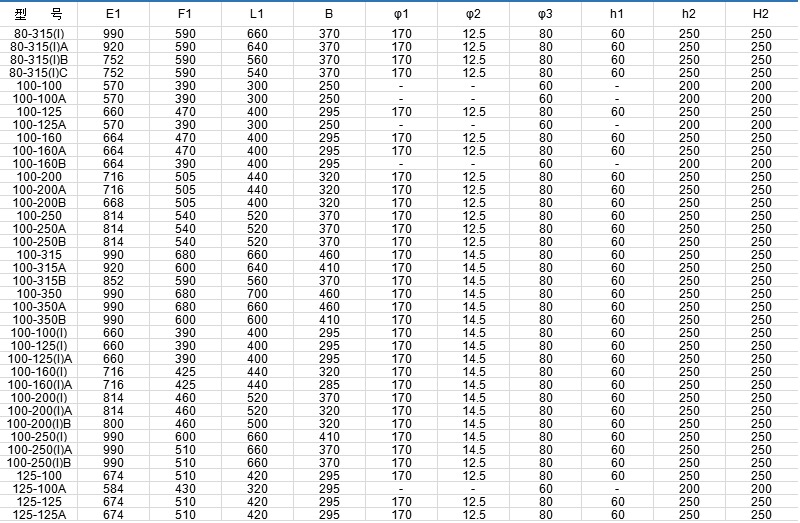

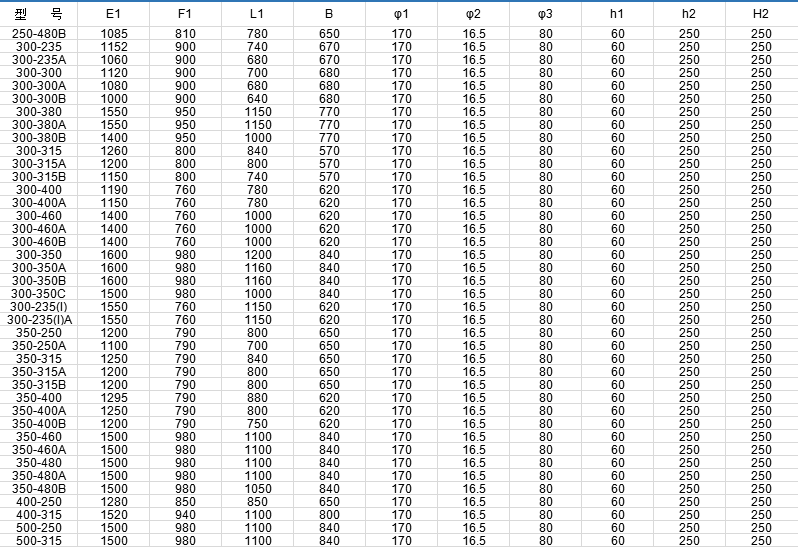

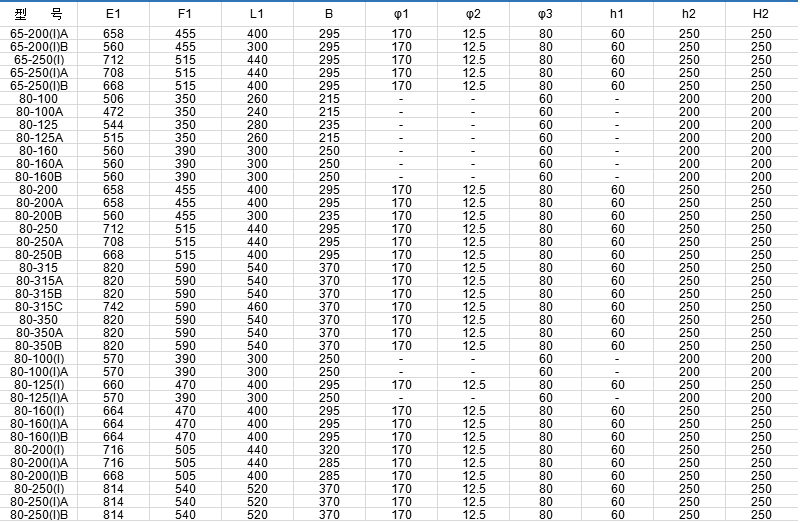

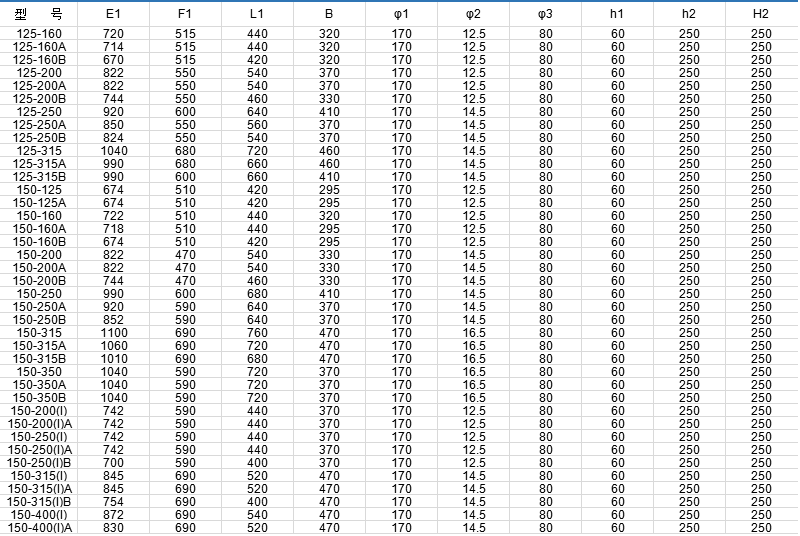

Base size
