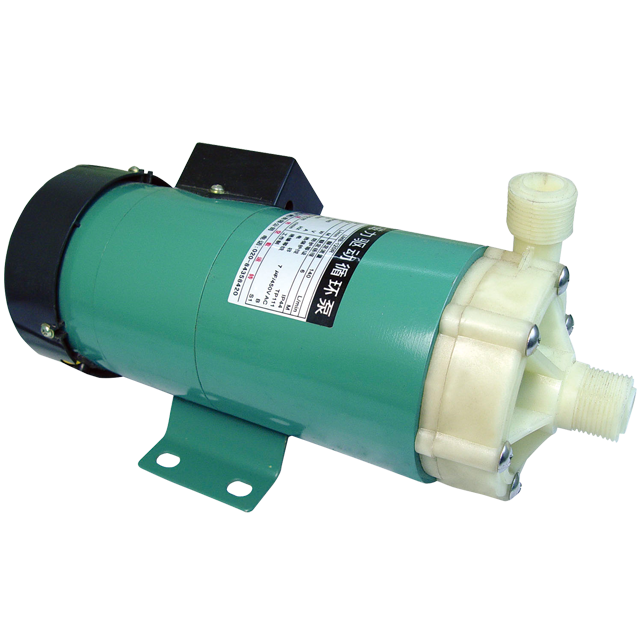

MP Series Plastic Magnetic Pump

Magnetic drive circulation pump is a full-sealed pump,for motor connecting shaft and impeller are separately equipped with magnetic materials,they attract each other and coupled.It unnecessary to fit with traditional shaft seal.The rotation torsion of motor drives impeller to rotate through the attraction between driving magnet and driven magnet.The shortcoming of present customary magnetic drive pump is that rotation is absolutely prohibited under the condition of locking liquid,otherwise,the machine will be destroyed,resulted for abrasion and corrosion.Magnetic drive circulation pump is designed for no shaft seal,completely avoids of pollution after corrosion caused by liquid leakage,which exits in traditional mechanical shaft seal pump.It is the optimum liquid transport pump on the industrial equipments.

Overview

Magnetic drive pump operation in even the shaft and impeller are respectively assembled on the magnetic coupling to attract each other, no need to match with the traditional mechanical bearing, which is completely sealed. Motor rotating torque is driven by the driving force of magnetic and driven by the gravitational force of the work of the blade. The conventional magnetic drive pump is a great disadvantage is that in the absence of the absolute prohibition of the operation, or the whole machine will be destroyed to the user to add unnecessary trouble and trouble. Magnetic pump Smpic pump is not to worry about. The utility model adopts a specially designed special type ceramic bearing, which has the characteristics of strong abrasion resistance and corrosion resistance, and can ensure the advanced nature and the safety performance of the bearing. Magnetic drive without shaft seal adopts the design of circulating pump, completely avoids leakage caused by corrosion defects existing in the traditional mechanical seal pumps after pollution of the liquid, is the most ideal industrial equipment in liquid delivery pump.

The pump is the crystallization of high field of magnetic pump technology. Condensation of the unit design staff for many years of painstaking effort, but also the highest technical content of the product.

MP magnetic pump has a unique design, beautiful shape, especially the bearing adopts ceramic material with special formula, have extremely strong resistance to abrasion and corrosion, out of the magnetic pump "full load" area, ensure the advanced nature and its safety.

Major Performance parameters

Applications

 Chemical industry:sodium carbonate industry(production of hydrochloric acid,hypochlorous acid,secondary chemical product);production of fluoride,chemical fertilizer;cycle of reactive liquid id of gas absorb tower,abstract grease (sulfuric acid);recycle & reactivation system of waste acid substance;transport of strong acid between chemical factory and transport vehicle.

 Pharmacy industry:production of luminophor(EL)for semiconductor,pesticides,medicine,water treatment agent.

 Electric plate:cycle filter kinds of electroplating liquid.

 Photograph processing:Instant photography system;X film,wash-out of black and white,color and solid Photograph.

 Electric appliance:production of chemical capacitor (erosion by alum inure film)Transport electrolyte for manufacture of dry battery and accumulator;Etching circuit board;Transfer high purity of chemical high purity of chemical liquid during the manufacture of semiconductor.

 Metal industry:treatment device for aluminum oxide film;Wire stretching;Oil elimination and acid Cleaning for steel rolling;Oil elimination and acid cleaning before painting of vehicle;production of oxidized titanium and rare earth element.

 Mineral industry:fusion metallurgy(Transport and recycle the electrolyte);handling waste Liquid.

 Food industry:production of gluconic acid(hydrochloric acid);abstracting cooking oil(sulfuric acid);potted fruit industry(hydrochloric acid).

 Medicine remedy:Man-made kidney and heart,ultrasonic washing machine and various of medical equipment.

 Water treatment:Cleaning ion exchange resin;pure water production equipment;sea-water desalting equipment.

 Pollution controll:Add waste water treatment agent to medical liquid tank;collect and transport waste liquid;waste gas absorb equipment(deodorization equipment,desulfurization before waste gas discharge).

 Other application:Applied in silver recycle,wafer manufacture,laboratory-ice making machine,drinking machine,living boiler,heating exchange machine,solar energy system,dyeing,laser system.Water spouting pool,rearing pond fish jar etc.

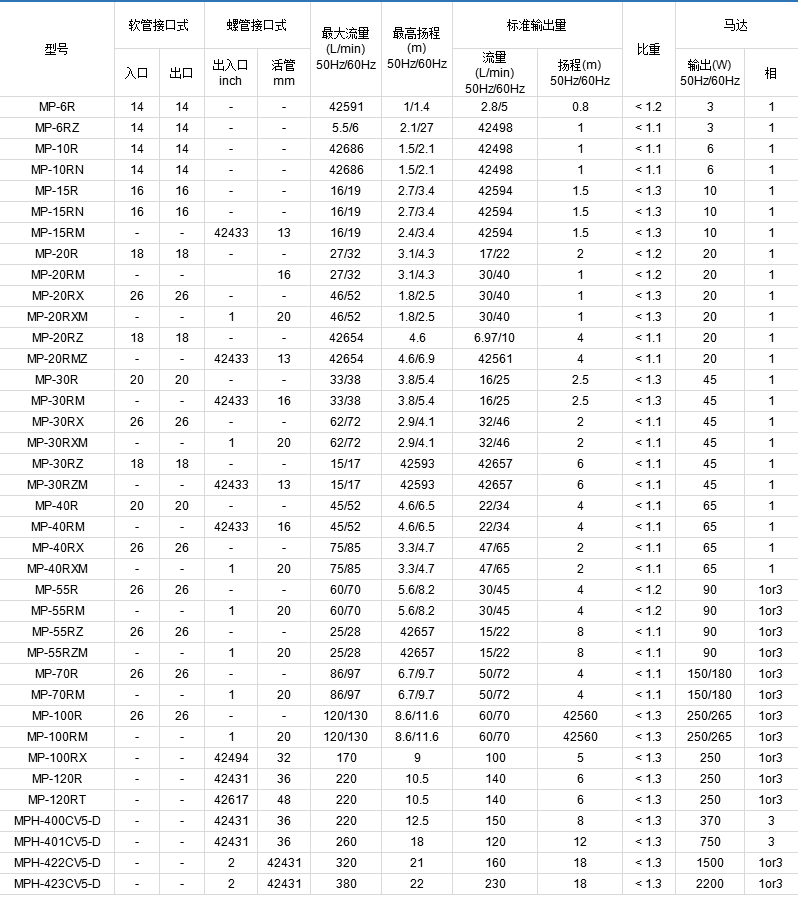

Parameters

Structure diagram

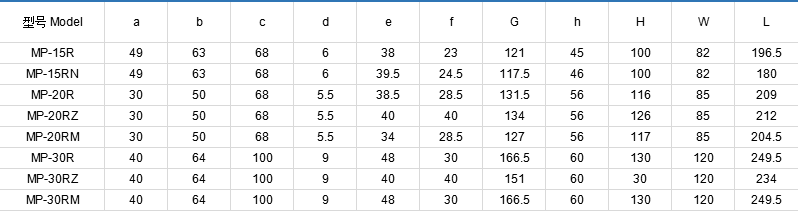

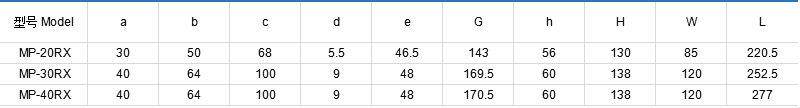

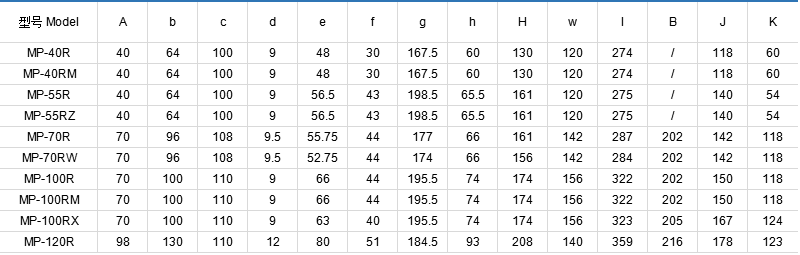

Installation size

Note:

 The performance and connection size for pump spiral interface is as same as the pump with tube interface.

 MP-120RT magnetic pump:Latest interface deign Convenient and quickly to be dismantled and reinstalled.Suitable for the vocations such as family fish viewing,seafood breeding etc.

 Magnetic Drive pump of MPH-400 cam be equipped with the motor of 0.3KW,and its conection is 70 of the IEC standard.

 Magnetic Drive pump of MPH-401 can be equipped with the motor of 0.75KW,and its connedtion is 80 of the IEC standard.

 G=is the straight plpe specs of UK.

 We will not notice of the speciflcation and the dimension changed.
