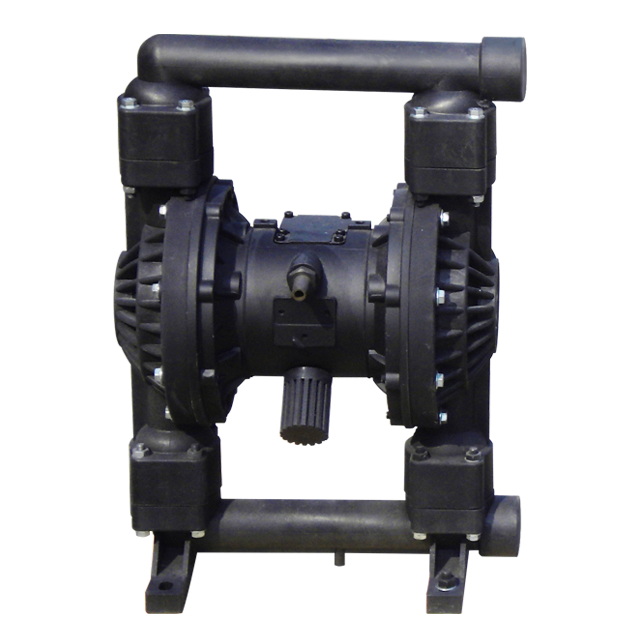

Overview

Factory production QBY series pneumatic diaphragm pump is a new transport machinery, is currently one of the most innovative pump. Using compressed air as power source for a variety of corrosive liquids with particles of liquid, high viscosity, volatile, flammable, poisonous liquid can be pumped exhaust.

The factory currently has a series production, total of eight specifications diameter: Φ10mm (3/8 ''), Φ15mm (1/2 ''), Φ25mm (1 ''), Φ40mm (3/2 ''), Φ50mm (2 ''), Φ65mm (5/2 ''), Φ100mm (4 '').

Four of its material, aluminum, cast iron, stainless steel, engineering plastics. Diaphragm pumps were used nitrile rubber, chloroprene rubber, fluorine rubber, PTFE depending on the liquid medium. To meet the needs of different users.

The pump has been domestic oil, chemicals, electronics, ceramics, textiles and widely used system units installed in a variety of special occasions, for pumping a variety of conventional pump can not pump the media, have achieved satisfactory results.

Feature

No leakage, self-absorption can be unloaded, do not have electricity more secure.

Signification of Model

Application

◆ Pumping peanut butter, pickles, mashed potatoes, sausage, chocolate, hops, syrup and the like;

◆ Pumping paint, paint, glue and adhesives;

◆ Pumping all kinds of tile, porcelain, tiles and pottery glaze and so on;

◆ Pumping all kinds of abrasive, corrosive, cleaning grease, etc;

◆ Various sewage pumping cement grout and mortar, etc;

◆ Pumping a variety of acid, alkali, strong corrosive liquids;

◆ Pumping a variety of acid, alkali, strong corrosive liquids;

◆ As well a variety of solid-liquid from the device pre-delivery pressure device.

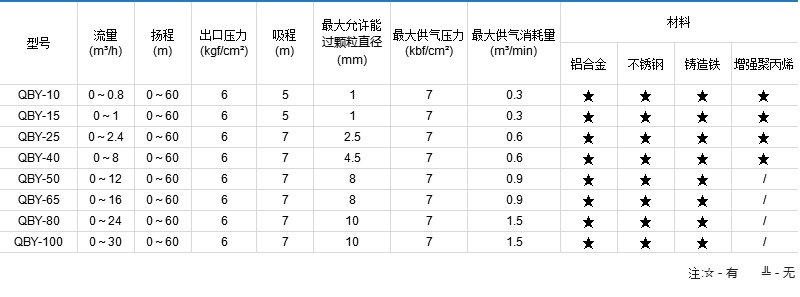

Parameters

Appearance size

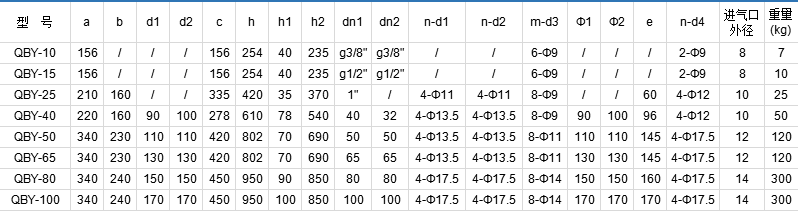

Installation size
